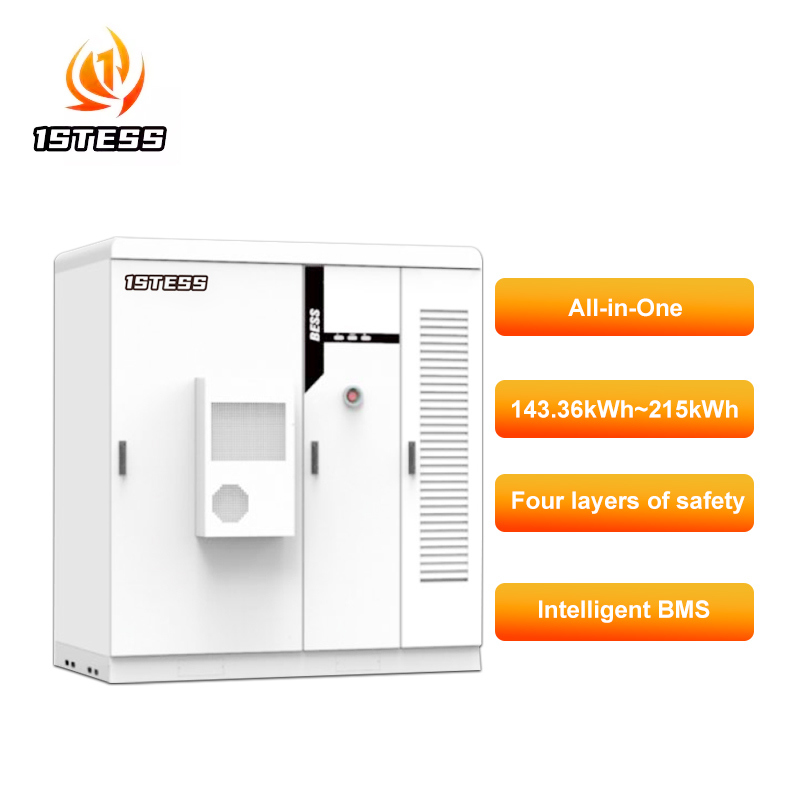

Integrated Battery Cabinet With Automatic Fire Protection And Multiple Energy Sources

Name: Integrated Battery Cabinet With Automatic Fire Protection And Multiple Energy Sources
Brand: Shenzhen First Tech Co., Ltd.
SKU: Energy2.0-m
Price: 341,112.00 USD
Availability: InStock

Produktdetails

Herkunftsort: CHINA

Markenname: 1stess

Zertifizierung: LVD

Modellnummer: Energy2.0-m

Dokument: Specification EnerArk 2.0 -...ld.pdf

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge: 1 Stück

Preis: negotiable

Verpackung Informationen: Container

Lieferzeit: 45-60 Tage

Versorgungsmaterial-Fähigkeit: 10 Behälter pro Monat

Erhalten Sie besten Preis

Kontakt jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              industrial battery cabinet with fire protection, energy storage system with multiple sources, automatic fireproof battery storage cabinet


Betriebstemperatur:	-20 ° C bis 50 ° C.	Zertifizierungen:	IEC, UN, UL
Akku-Typ:	Lifepo4	IP -Schutz:	IP55
Installation:	Innen- oder Außenbereich	Anwendung:	Industriell und kommerisch
Garantie:	5 Jahre	Kapazität:	107,52KWH-125.44KWH

Betriebstemperatur:	-20 ° C bis 50 ° C.
Zertifizierungen:	IEC, UN, UL
Akku-Typ:	Lifepo4
IP -Schutz:	IP55
Installation:	Innen- oder Außenbereich
Anwendung:	Industriell und kommerisch
Garantie:	5 Jahre
Kapazität:	107,52KWH-125.44KWH

Beschreibung

Integrated Battery Cabinet With Automatic Fire Protection And Multiple Energy Sources

Product Features

Plug-and-Play for ready to use
All-in-One integrated modular design
DC coupled for solar accessing
Unbalanced loads operation
Parallel operation up to 60 Nos
Virtual Power Plant (VPP) enabled
Auxiliary grid service application
Complete certificate: CE (IEC 61000,IEC62619,IEC62477),UL,G99, UN3480, UN38.3

Technical Specifications

Model	EnerArk2.0-NBN-P50	EnerArk2.0-NBN-P100
DC side Parameters
Cell type	LFP-280Ah
Module model	IP20S
Battery capacity range	143.36kWh~215kWh	215kWh
AC On-Grid Side Parameters
Grid connection type	3P4W
Charging/discharging power	50kW	100kW
Rated grid voltage	AC 400V±15%
Frequency range	45Hz~55Hz
Rated AC output current	72A	144A
Power factor	0.8(Leading)~0.8(Lagging)
Harmonics	≤3%(at rated power)
AC off-grid side parameters
Load type	3P4W
Rated output power	50kW	100kW
Rated output voltage	AC400V±1%
Rated output frequency	50Hz
Rated current	72A	144A
Frequency accuracy	0.2Hz
General Parameters
Dimensions (WHD)	1900mm2100mm1330mm
Packing size(WHD)	2100mm2244mm1500mm
Maximum weight	2500kg
Degree of protection	IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type	Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system	FM200 automatic fire extinguishing
Anti-corrosion grade	C3
Relative humidity	0-95%(non-condensing)
Operating temperature*	-20℃~50℃
Altitude**	<2000m
Noise level	≤75dB
Communication interface	RS485,Ethernet
Communication protocol	Modbus RTU,Modbus TCP/IP
Product standard warranty	5 years,6000 cycles(0.5C,95%DOD,EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power	30kW/60kW/90kW/120kW
MPPT voltage range	200V-850V
Number of MPPTs	1/1/2/2
Number of PV inputs	1/1/2/2
Maximum input current	100A/200A/300A/400A
Certifications	CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS Converter:UK G99,VDE4105,EN50549 Cell:IEC62619,UL1973,UL1642,UL9540A

Battery Energy Storage System FAQs

Canada

For Canada's cold climate and remote communities, EnerArk-2.0 offers a robust, all-weather energy storage system with solar and generator compatibility.

Q: How does it perform in sub-zero temperatures?

A: It operates from -20°C to 50°C, making it reliable even in harsh Canadian winters.

Q: Can it be used in off-grid communities?

A: Yes, its microgrid capability allows integration with local solar, wind, or diesel systems.

Q: Is it certified for Canadian standards?

A: It has UL and CE marks, which are widely accepted, and we can help with local certifications.

Q: What is the battery lifespan in cold conditions?

A: LiFePO4 batteries perform well in low temperatures, and the BMS ensures optimal operation.

Q: Can it reduce energy costs for remote industrial sites?

A: Yes, by storing cheap renewable energy and reducing diesel consumption, it cuts costs significantly.

Q: How is the system protected against snow and ice?

A: The IP55 rating ensures protection against dust and water, suitable for snowy environments.

United Arab Emirates

In the UAE, where heat and high energy demand prevail, EnerArk-2.0 provides a durable, high-capacity storage solution for solar integration and backup power.

Q: How does it handle extreme heat and dust?

A: With IP55 protection and air conditioning cooling, it operates reliably in desert conditions.

Q: Can it be used with large-scale solar farms?

A: Yes, the high PV input capacity and MPPT range make it ideal for solar farm coupling.

Q: Is it suitable for hotel and resort backup?

A: Absolutely. Its silent operation and compact design make it perfect for hospitality sectors.

Q: What anti-corrosion measures are included?

A: It has a C3 anti-corrosion grade, suitable for coastal and high-salinity environments.

Q: Can it help achieve sustainability goals?

A: Yes, by enabling higher renewable penetration and reducing carbon footprint.

Q: Is local technical training available?

A: Yes, we offer training and remote support for partners and clients in the UAE.
