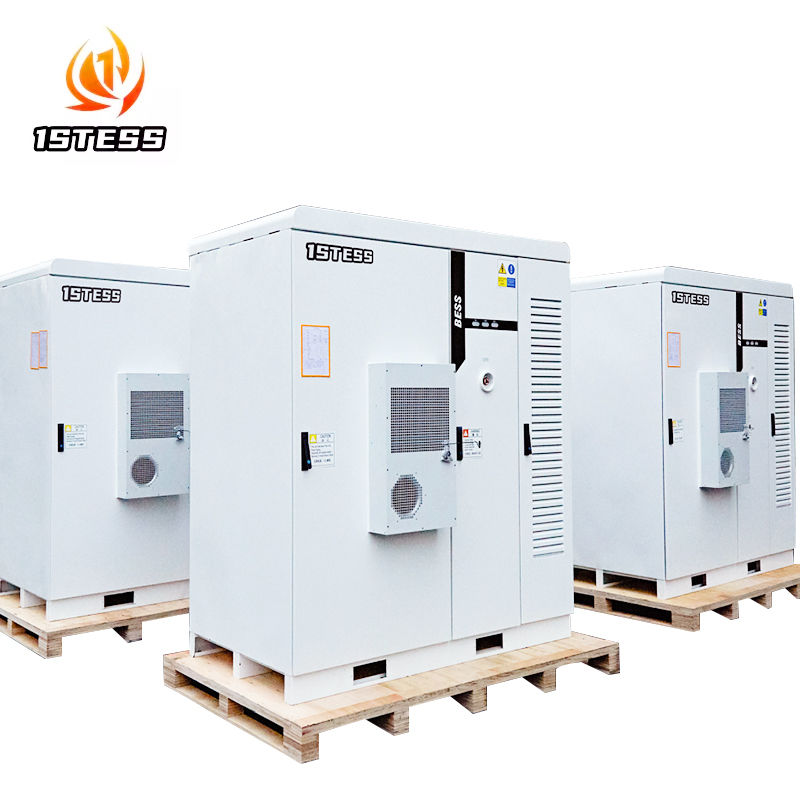

LiFePO4 Energy Storage Cabinet 30-100kW Industrial Battery System

Name: LiFePO4 Energy Storage Cabinet 30-100kW Industrial Battery System
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerArk2.0-M
Price: 341,112.00 USD
Availability: InStock

Produktdetails

Place of Origin: China

Markenname: 1stess

Zertifizierung: LVD

Model Number: EnerArk2.0-M

Dokument: Specification EnerArk 2.0 -...ld.pdf

Zahlungs-u. Verschiffen-Ausdrücke

Minimum Order Quantity: 1 piece

Preis: negotiable

Packaging Details: container

Delivery Time: 45-60 days

Supply Ability: 10 containers per month

Erhalten Sie besten Preis

Kontakt jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              LiFePO4 energy storage cabinet 30-100kW, industrial battery system with warranty, high-capacity energy storage cabinet


Operating Temperature:	-20°C To 50°C	Certifications:	IEC,UN,UL
Battery Type:	LiFePO4	IP protection:	IP55
Installation:	Indoor Or Outdoor	Application:	Industrial And Commerical
Warranty:	5 Years	Capacity:	107.52KWH-125.44KWH

Operating Temperature:	-20°C To 50°C
Certifications:	IEC,UN,UL
Battery Type:	LiFePO4
IP protection:	IP55
Installation:	Indoor Or Outdoor
Application:	Industrial And Commerical
Warranty:	5 Years
Capacity:	107.52KWH-125.44KWH

Beschreibung

LiFePO4 Energy Storage Cabinet 30-100kW Industrial Battery System

Energy Storage Cabinet with 30-100kW Output Power LiFePO4 Battery

Key Specifications

Attribute	Value
Operating Temperature	-20°C To 50°C
Certifications	IEC, UN, UL
Battery Type	LiFePO4
IP Protection	IP55
Installation	Indoor or Outdoor
Application	Industrial and Commercial
Warranty	5 Years
Capacity	107.52KWH-125.44KWH

Product Features

Plug-and-Play ready to use system
All-in-One integrated modular design
DC coupled for solar access
Unbalanced loads operation capability
Parallel operation support for up to 60 units
Virtual Power Plant (VPP) enabled
Auxiliary grid service applications
Complete certifications: CE (IEC 61000, IEC62619, IEC62477), UL, G99, UN3480, UN38.3

Technical Parameters

Model	EnerArk2.0-NBN-P50	EnerArk2.0-NBN-P100
DC Side Parameters
Cell type	LFP-280Ah
Module model	IP20S
Battery capacity range	143.36kWh~215kWh	215kWh
AC On-Grid Side Parameters
Grid connection type	3P4W
Charging/discharging power	50kW	100kW
Rated grid voltage	AC 400V±15%
Frequency range	45Hz~55Hz
Rated AC output current	72A	144A
Power factor	0.8(Leading)~0.8(Lagging)
Harmonics	≤3%(at rated power)
AC Off-Grid Side Parameters
Load type	3P4W
Rated output power	50kW	100kW
Rated output voltage	AC400V±1%
Rated output frequency	50Hz
Rated current	72A	144A
Frequency accuracy	0.2Hz
General Parameters
Dimensions (W×H×D)	1900mm×2100mm×1330mm
Packing size (W×H×D)	2100mm×2244mm×1500mm
Maximum weight	2500kg
Degree of protection	IP55 (Battery Cabinet) IP34 (Electrical Cabinet)
Cooling method type	Battery Cabinet (air conditioner) & Electrical Cabinet (forced air cooling)
Fire fighting system	FM200 automatic fire extinguishing
Anti-corrosion grade	C3
Relative humidity	0-95% (non-condensing)
Operating temperature	-20℃~50℃
Altitude	<2000m
Noise level	≤75dB
Communication interface	RS485, Ethernet
Communication protocol	Modbus RTU, Modbus TCP/IP
Product standard warranty	5 years, 6000 cycles (0.5C, 95%DOD, EOL:70%)
PV Side Parameters (Optional)
Maximum PV input power	30kW/60kW/90kW/120kW
MPPT voltage range	200V-850V
Number of MPPTs	1/1/2/2
Number of PV inputs	1/1/2/2
Maximum input current	100A/200A/300A/400A
Certifications	CE (IEC61000, IEC62619, IEC62477), UN3480, UN38.3, MSDS Converter: UK G99, VDE4105, EN50549 Cell: IEC62619, UL1973, UL1642, UL9540A

Multi-Function Capabilities

The EnerArk-2.0 is a compact, Plug-and-Play battery energy storage system designed for easy transportation, installation, and maintenance. This All-in-One system integrates PCS, batteries, BMS, EMS, MPPT, automatic fire control, and temperature control systems.

Featuring high-performance EV-grade LiFePO4 batteries, the system delivers exceptional safety and reliability with four layers of protection and intelligent BMS design. The synergistic integration of components and unique design enables efficient charging and discharging for diverse applications, offering high energy density and maximized battery lifespan for lower LCOE (Levelized Cost of Energy).

The system supports both AC and DC coupling applications, facilitating seamless integration for all ranges of commercial and industrial energy storage projects.
